Miniature Micropositioner - Three Axis
As low as
$274.00
Only %1 left
Prices valid in USA, Canada, and PR only.
Order code
Price range: $274 - $1,300
Prices valid in USA, Canada, and PR only.
The MM1 single stage measures only 5 x 11 x 26 mm with 3 mm travel. It provides precise and smooth motion with no backlash, positive spring loaded carriage, straight within 1 micron and less than 1 micron maximum wobble. It features fine 80 TPI screw adjustment. The 10 mm square mounting surface has a 3.9 mm tapped center hole for transmission and/or mounting. X-Y-Z axis configuration. Available in single X (MM1), X-Y, X-Y-Z (MM1-3) axis configurations. The unit may be purchased with an optional magnetic base (MM1-ALL or MM3-ALL.
Prices valid in USA, Canada, and PR only.
Single and three axis micropositioners for small jobs
- MM3-3 opens 0-4 mm
- Precise and smooth motion
- Less than 1µm maximum wobble
Options
Order code | Axis | Travel | Magnetic Base |
MM1 | 1 axis | 3 mm | No |
MM1-3 | 3 axis | 3 mm | No |
MM1-ALL | 3 axis | 3 mm | Yes |
MM3 | 1 axis | 13 mm | No |
MM3-3 | 3 axis | 13 mm | No |
MM3-ALL | 3 axis | 13 mm | Yes |
Benefits
- Compact
- Provides precise and smooth motion with no backlash
Applications
- Oocyte injection with Nanoliter Injector
The MM1 single stage measures only 5 x 11 x 26 mm with 3 mm travel. It provides precise and smooth motion with no backlash, positive spring loaded carriage, straight within 1 micron and less than 1 micron maximum wobble. It features fine 80 TPI screw adjustment. The 10 mm square mounting surface has a 3.9 mm tapped center hole for transmission and/or mounting. X-Y-Z axis configuration. Available in single X (MM1), X-Y, X-Y-Z (MM1-3) axis configurations. The unit may be purchased with an optional magnetic base (MM1-ALL or MM3-ALL.

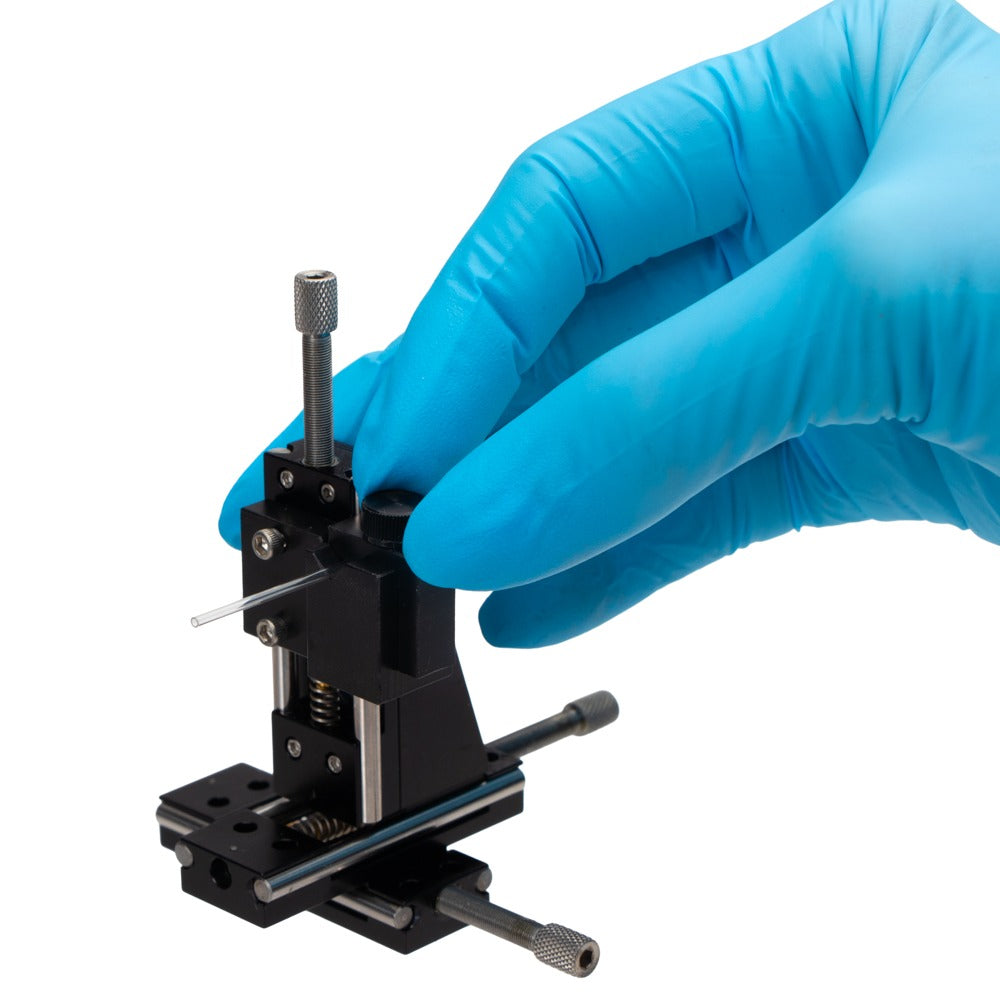

The MM3 Single stage measures only 7 × 17 × 44 mm with 13mm travel. It offers precise and smooth motion with no backlash, positive spring-loaded carriage, straight within 1.5 µm, and less than 1.5 µm maximum wobble. It features fine 80 TPI screw adjustment. The 13mm square mounting surface has a 7mm tapped center hole for transmission and/or mounting. Available in single X (MM3), X-Y, X-Y-Z (MM3-3) axis configurations.
SKU | VAR-3128 |
---|
 | MM1/MM1-3 | MM3/3MM3-3 |
Travel | 3 mm | 0.5" (13 mm) |
Runout (maximum) | 1.0 μm over 3 mm of travel | 1.5 µm over 13 mm of travel |
Return Force ext.-comp. | 113-312 g | 6-20 oz. (170-56 g) |
Weight | 12Â g/axis | 48 g/axis |
Screw Pitch | 80TPI | 80TPI |
Backlash | 0 (no ball bearings) | 0 (no ball bearings) |
Sensitivity | 0.5μm | 0.5µm |
Wobble (maximum) | 10 μrad (2 arc sec) (no ball bearings) | 0.01 lmrad |
Thermal Stabilty | 15°-75°C | 15º - 75ºC |
Load Capacity | Â | Â |
  Direct top or side load | 0.25 kg | 0.34 kg |
   Push | 0.5 kg | 1 kg |
   Retract ext-comp | See return force as specified above | See return force as specified above |
   Tilt | 3 in.-oz. (210 g-cm) | 6 in.-oz. (420 g-cm) |
   Twist | 1.5 in.-oz. (105 g-cm) | 3 in.-oz. (210 g-cm) |
Clear Aperture | 3.9 mm tapped hole, 8-32 thread | 7 mm tapped hole, 5/16-16 thread |
Finish | Black anodized | Black anodized |
Dimensions (not including lead screw extension) | -X Single Stage: 26.2 x 11.2 x 5.1mm -XY (2-axis): 26.2 x 26.2 x 10.2mm -XYZ (3-axis): 26.2 x 26.2 x 36.3mm |
